Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC

Short Description:


Product Detail

Our Advantages

Product Tags

Related Video

Feedback (2)

Sticking towards the principle of "Super High-quality, Satisfactory service" ,We've been striving to become a superb business partner of you for Nb-Iot Automatic Meter Reading Module , Rg1xx , Lora Transceiver , We warmly welcome friends from all walks of life to cooperate with us.
Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC Detail:

Features

Ideal for residential use, often used for public utilities

For hot and cold water, mechanical drive

Comply with ISO4064 standard

Certified for using with drinking water

IP68 Waterproof grade

MID certificate

Electromechanical separation, replaceable battery

uwnsdl (3)

Technical Specs

Item Parameter
Accuracy Class Class 2
Nominal Diameter DN15~DN20
Valve No valve
PN Value 1L/P
Metering mode Non-magnetic inductance metering
Dynamic Range ≥R250
Maximum Working Pressure 1.6MPa
Working Environment -25°C~+55°C
Rating of Temp. T30
Data Communication NB-IoT, LoRa and LoRaWAN
Power Supply Battery powered, one battery can work continuously over 10 years
Alarm Report Support real-time alarm of data abnormality
Protection Class IP68
Solutions NB-IoT LoRa LoRaWAN
Type HAC-NBh HAC-ML HAC-MLW
Transmitting current ≤250mA ≤130mA ≤120mA(22dbm)≤110mA(17dbm)
Transmitting power 23dBm 17dBm/50mW 17dBm/50mW
Average power consumption ≤20µA ≤24µA ≤20µA
Frequency band NB-IoT band 433MHz/868MHz/915MHz LoRaWAN frequency band
Handheld device Support Support Do not support
Coverage(LOS) ≥20Km ≥10Km ≥10Km
Setting mode Infrared setting and upgrade FSK setting FSK setting or Infrared setting and upgrade
Real-time performance Not real-time Real-time control meter Not real-time
Data downlink delay 24h 12s 24h
Battery life ER26500 battery life: 8 years ER18505 battery life: about 13 years ER18505 battery life: about 11 years
Base Station Using the base stations of NB-IoT operator, one base station can used with 50,000 meters. One concentrator can manage 5000pcs water meters, no repeater. One LoRaWAN gateway can cconnect with 5000pcs water meters, the gateway supports WIFI, Ethernet and 4G.

Product detail pictures:

Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC detail pictures

Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC detail pictures

Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC detail pictures


Related Product Guide:

Sticking for the belief of "Creating items of top of the range and creating buddies with people today from all over the world", we normally put the interest of shoppers in the first place for Manufacturing Companies for Wireless remote water meter - R160 Dry Type Multi-jet Non-magnetic Inductance Water Meter – HAC , The product will supply to all over the world, such as: Uruguay, Barbados, Leicester, We have constructed strong and long co-operation relationship with an enormous quantity of companies within this business in Kenya and overseas. Immediate and specialist after-sale service supplied by our consultant group has happy our buyers. Detailed Info and parameters from the merchandise will probably be sent to you for any thorough acknowledge. Free samples may be delivered and company check out to our corporation. n Kenya for negotiation is constantly welcome. Hope to get inquiries type you and construct a long-term co-operation partnership.

1  Incoming Inspection

 Matching gateways, handhelds, application platforms, testing software etc. for system solutions

2  welding products

Open protocols, dynamic link libraries for convenient secondary development

3  Parameter testing

Pre-sales technical support, scheme design, installation guidance, after-sales service

4  Gluing

 ODM/OEM customization for quick production and delivery

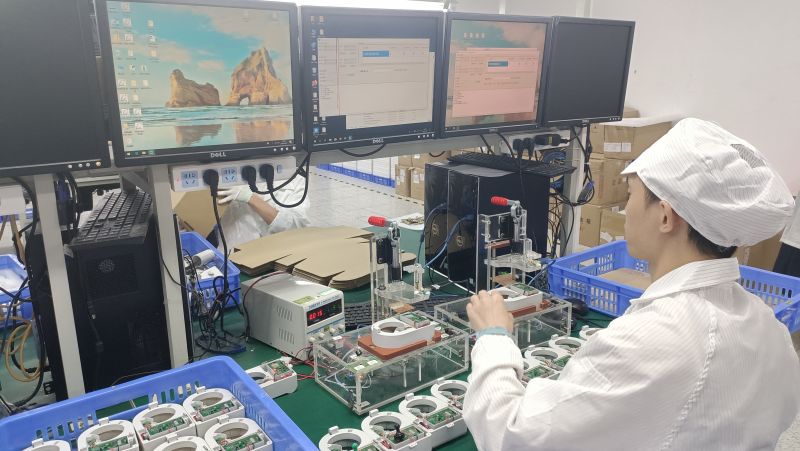

5  Testing of semi-finished products

7*24 remote service for quick demo and pilot run

6  Manual re inspection

Assistance with certification and type approval etc.

7 package22 years industry experience, professional team, multiple patents

8  package 1
